Our Products

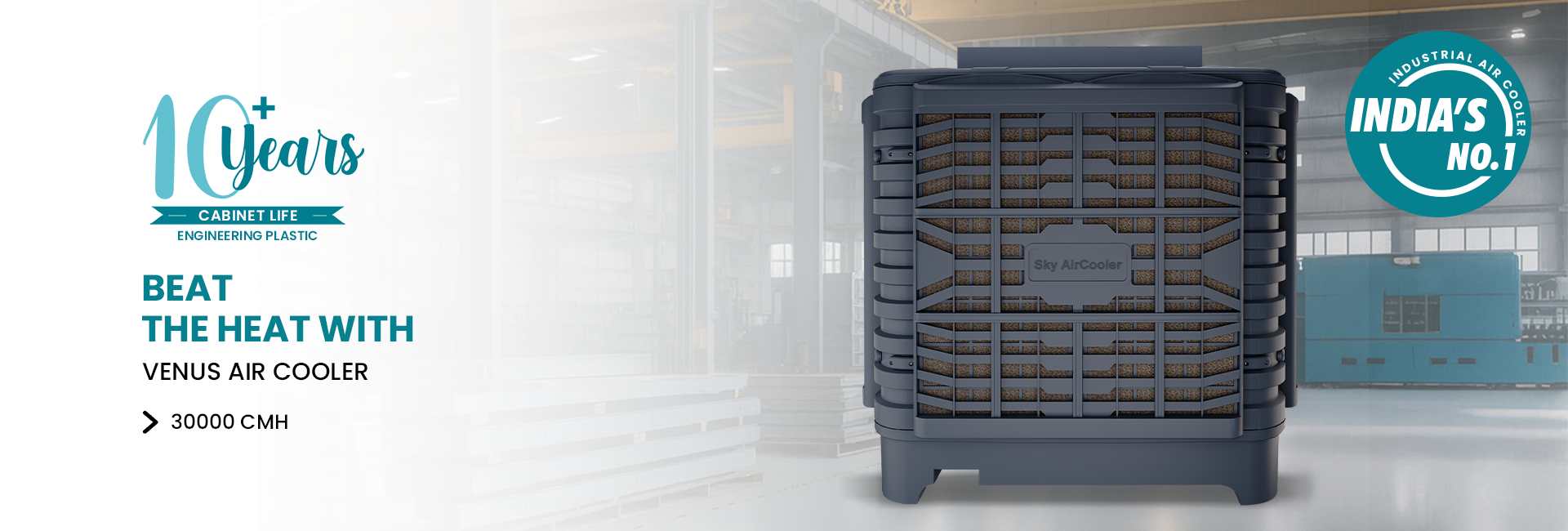

Venus Air Cooler
| Particulers | Venus Air Cooler |
|---|---|
| Discharge | Top/Bottom |
| Motor (V/Hz) | 220 To 415V / 50Hz / 60Hz |
| Power (KW) | 3 |
| Phase | Three / Single |
| Speed | Single / Variable |
| Air Pressure (P.A) | 350 |
| Fan Type | Axial (6 Blade) |
| RPM (Running Per Minutes) | 1440 |
| Controller | Single Speed / Multi Speed |
| Water Drain | Manual / Auto |
| Net Weight (Kg) | 140 |
| Dust Filter | Yes |
| Air Outlet Size (Mm) | 765 × 765 |
| Dimension L×W×H (Mm) | 1343 × 1343 × 1385 |
Heavy Duty Air Cooler
30000 CMH
The Venus Air Cooler is a high-performance cooling solution designed for industrial and commercial spaces. With an impressive airflow capacity of 30,000 CMH, it effectively cools areas up to 3,000 sq. ft. Its energy-efficient 3.7 kW motor, durable 6-blade axial fan, and robust air pressure ensure optimal cooling performance. Equipped with a 45-liter water tank, manual/auto drain options, and a built-in dust filter, it delivers fresh, clean air while minimizing maintenance. Compact and versatile, the Venus Air Cooler is ideal for large-scale cooling needs with flexible installation options and low noise operation.
Advantages of Venus Air Cooler
High Airflow: Offers an impressive airflow capacity of 40,000 CMH, ideal for large spaces.
Flexible Discharge Options: Features top and bottom discharge for versatile installation.
Large Cooling Area: Effectively cools areas up to 3,500 square feet.
Robust Air Pressure: Ensures optimal air circulation with a pressure rating of 370 P.A.
Efficient Motor: Operates on a motor range of 380-415V and 50/60Hz, providing stable performance.
Energy Efficient: Requires only 3.7 kW of power, saving on electricity costs.
Durable Fan Design: Equipped with an 8-blade axial fan for consistent airflow at 1440 RPM.
Ample Water Capacity: Comes with a 45-liter water tank for extended cooling operations.
Noise Control: Operates at a noise level below 79 dB, ensuring a quieter environment.
Durable & Sturdy Build: With a weight of 145 kg (top) or 139 kg (bottom), it is designed for stability and reliability.
Convenient Water Drain: Offers manual and auto water drain options for ease of maintenance.
Integrated Dust Filter: Ensures cleaner and fresher air by filtering out dust and particles.
Compact Design: Dimensions of 1343 x 1343 x 1385 mm make it suitable for various industrial and commercial setups.
High Capacity for Shipping: Accommodates up to 45 units (SKD) or 9 full units per 40HQ container.
Benefits
Energy-Efficient Operation
- Consumes up to 80% less energy than traditional HVAC systems.
- Lower operational cost, especially suitable for continuous use.
Environmentally Friendly
- Uses natural evaporation process without harmful refrigerants.
- Lowers carbon footprint and promotes green cooling.
Easy Installation & Maintenance
- No ducting or complex piping required.
- Minimal maintenance with accessible components (fan, motor, pump, pads).
Fresh & Filtered Air Supply
- Pulls in fresh air, filters it through wet cooling pads, and removes dust and pollutants.
- Reduces indoor air pollution and improves air quality.
Effective Cooling for Large Areas
- Designed for high air delivery (measured in CMH/CFM)
- Uniform airflow covers wide spaces more effectively than traditional coolers
Operates in Semi-Open or Open Areas
- Ideal for environments where traditional air conditioning is ineffective or uneconomical.
- Suitable for partially ventilated areas with constant heat load.
Dual Voltage & Phase Options Available
- Available in single-phase and three-phase models with dual voltage (220V/380-415V).
- Flexible installation across different industrial setups.
